SUBMERSIBLE PUMPS for dirty water
AISI 304

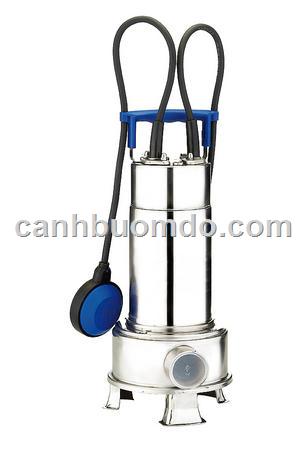

Submersible dirty water pump made of stainless steel AISI 304, double mechanical seals ensure long life and reliability. Suitable for dirty water systems with some solids. Applications include wastewater treatment plants and final effluent pumping, irrigation, and water displays. Options include with - without float switch. Solids handling up to 35mm.
Specifications
Maximum liquid temperature: 50°C
Maximum immersion: 10 mts
Maximum passage of solids: 35 mm
Materials
Pump casing, impeller, cover,
casing cover and motor casing in AISI 304
Shaft in AISI 303
Double mechanical seal with interposed
oil chamber: upper in carbon/ceramic/NBR,
lower in Sic/SiC/NBR
Technical document
Asincronous 2 poles motor
Insulation class F
Protection degree IP68
1~230V ± 10% 50Hz - 3~400V ± 10% 50Hz
Permanent split capacitor and automatic thermal overload protection for single-phase version
Thermal protection to be provided by the user for three-phase version DNM 1”1/2
Total head [m3/h] min 2.00 max 18.00
Total head [m] max 9.50 min 2.00
